Folding Door is a type of door which opens by folding door leaves or so-called door panels, and closes by unfolding the door leaves .It is an ideal type of door which is suitable for door areas with limited space. When a folding door is fully opened, it occupies the minimum space and could provide maximum opening width. Different from the conventional door with a standard width about 1000mm, most folding door could be reach a much bigger width. To TSTC folding door with the model TAF100H, the max opening width could reach 12 meter with the height could reach 4 meter.
▪ Features of TSTC Folding Door
1. Biggest space saving . Compared with other type of doors, like swing door, sliding door, revolving door etc., TSTC folding door, both automatic and manual type could save about 70% space of the entrance area .
2. Bigger dimensions are available . To the conventional door, the common size of the complete door is less than 5000 x2500mm, however, to TSTC folding door, the dimension could easily reach twice of the conventional doors , we can even make the folding door to the dimension 12,000 x 4,000mm at Bi-parting opening mode .

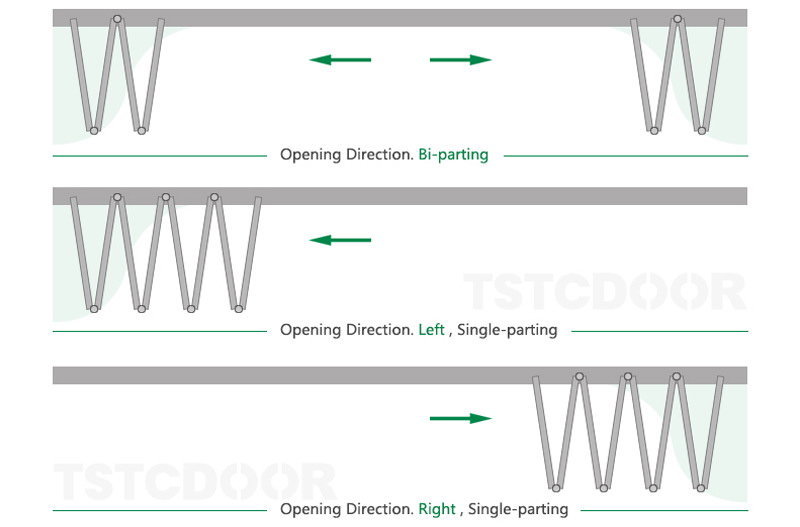

3. Different Opening Modes are available . There are 3 opening modes for TSTC folding doors, including the Bi-parting mode, single-parting mode to Left open and single-parting mode to Right open.
4. Different Surface Treatment are available . Our folding doors could adopt all the popular surface treatment like Painting , Anodizing and Wood grain transfer, which lead to a better performance on anti-corrosion and deformation resistance.
5. Different type of glass are available . Our folding doors could assemble almost all kinds of glass, like Tempered glass, Laminated glass, Low-E glass, Insulated glass ,Reflective glass etc.

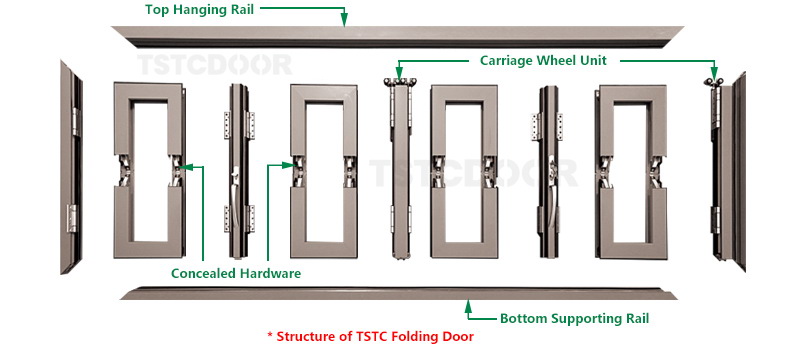

6. Larger bearing weight . The special structure (Top Hanging Rail +Bottom Supporting Rail) plus the high-strength aluminum profiles and hardware make our folding doors possess the bigger bearing weight, max 400kg to one set of carriage wheel unit .
7. To TSTC automatic folding door, all the key parts including the motor, gearbox /worm reducer, hanging rail and our patent concealed hardware could meet both American and European standard.
8. Different operation methods are available . To our automatic folding door, we could use the push button, remote controller to make the door open /close, or assemble the detective sensor to make the door open /close automatically .
